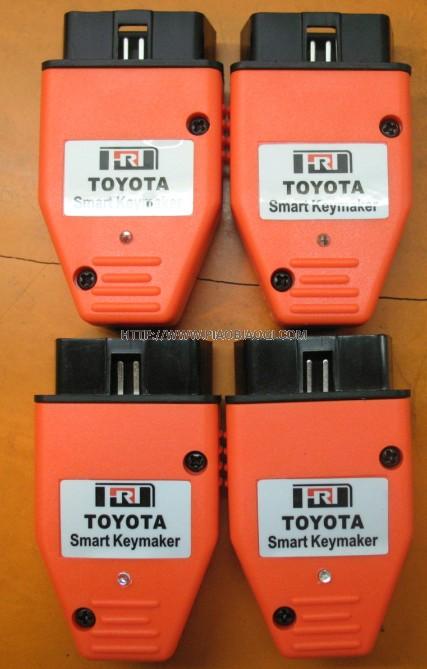

Smart Keys
1.Safe and efficient: Only need 20 seconds to add one key
2.It is safe for the security alarm system
3.Support all kinds of Toyota and Lexus smart key system: support K line and CAN-BUS protocols
4.It is the most safe and fast key programmer device for Toyota and Lexus series till now.
5.It supports all key lost
Using the smart key
1. Add the other keys into the main key
1.1..Insert the key programmer to the car diagnostic interface OBD, and the instrument will enter into the procedure of car auto searching with a short sound of "di".
1.2.Push the start-button twice. After 7 seconds the vehicle will connect the devices successfully, and the equipment will send off a sound of "di" with 4-5 times, (4 sounds mean that the system is the 4th period, 5 sounds mean that the system is the 5th period); after waiting for 30 seconds the equipment will send off a long soung of"di", it means the car enter into "learning key state."
2. When lost all keys or only have the deputy key, we need to do it initialize:
2.1.Hold down the LED button on the equipment, and insert it into the OBD, and release the button after the sound of "di" twice,the device enter into the state of search vehicles in this time. :
2.2..Push the start-button twice. After 7 seconds the vehicle will connect the devices successfully, and the equipment will send off a sound of "di" with 4-5 times, (4 sounds mean that the system is the 4th period, 5 sounds mean that the system is the 5th period); after 5 seconds the lights of SEC will be off; after waiting for 10-16 minutes the equipment will send off a long sound of "di", and the SEC lights flashing, that means the car enter into "learning key state."
3. Learning the intelligent key to the anti-theft of computer:
When the sign back of the intelligent keys near the launch button, will hear 2 sounds of "di" "di" at this time, the SEC lights will flash twice;after learning all the intelligent keys, it have to wait for 30 seconds until the SEC lights flash,and the system will close the learning pattern automatic.
Notice:
1.Must use the right new smart keymaker, and follow the right step above, otherwise you take the consequences.
2.If the device can match the key, and LED light shining constantly, pls clear the error code by using anti-theft system such as T300.
3.After finishing program keys, the key can strat but the SEC light is still turn on, maybe you use the vice key, only main key can manually shut the study mode.
4. Dont try to open the cover of programmer and dash board, otherwise you take the consequences.
5..This machine is only provided for the legal auto repair. Otherwise you will take the above consequences
